Bambu Lab R1 turns photographs into laser engravings

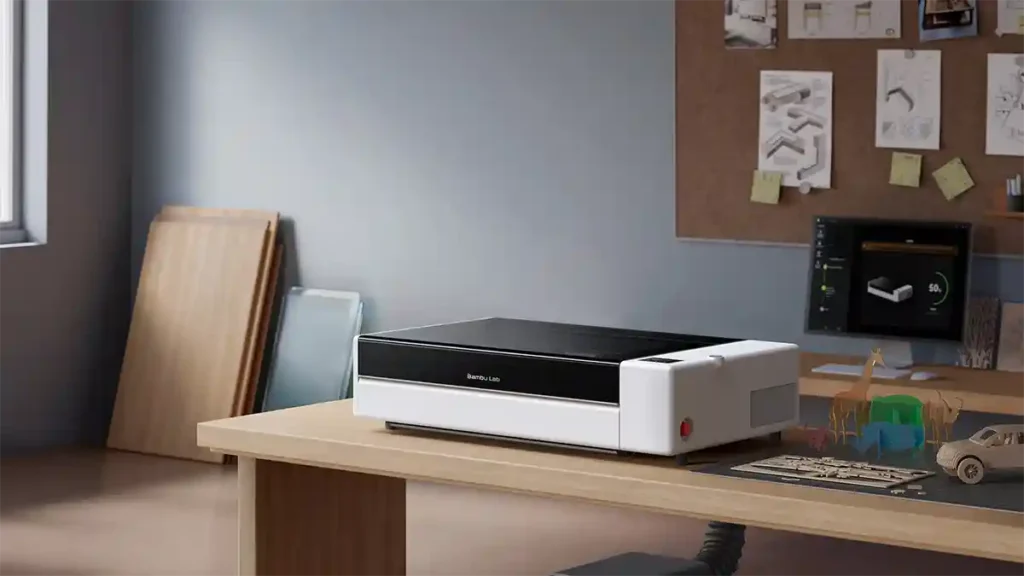

Photography normally ends with a screen, a print or perhaps a photo book, but the new Bambu Lab R1 offers a rather different way of turning an image into something physical. Instead of putting ink onto paper, this 55W CO2 laser cutter and engraver can burn photographic images directly into materials such as wood and engrave them into stone, opening up some interesting possibilities for displaying and selling photographs. Bambu R1 Media Kits cmpress

Announced on 22 September 2026, the R1 is Bambu Lab’s first dedicated laser cutter and its first product outside 3D printing. It can cut and engrave wood, acrylic, leather, paper and fabric, while Bambu Lab also specifies engraving support for glass, stone and coated metals. [Press Release] Big Job. Light …

It is that engraving capability that caught my attention from a photography perspective. A photograph can be prepared as an image file and translated into a laser engraving, with the laser effectively building the picture through different levels of burning or marking rather than ink. Wood is an obvious choice for portraits, landscapes, wedding photographs and personalised gifts, where the grain becomes part of the finished image.

Slate and similar stone surfaces offer another attractive option. Bambu Lab specifically lists stone amongst the materials the R1 can engrave, although its detailed specification sheet describes the category as ceramic rather than naming slate individually. In other words, I’d want to test a particular type of slate before promising results from it. Bambu R1 Media Kits cmpress The darker surface and pale engraved marks commonly associated with this type of work could potentially make black-and-white photographs particularly interesting.

For photographers, this sits alongside the renewed interest in getting photographs away from screens. We’ve recently looked at the return to physical images through the AgfaPhoto Print film development and printing service, while compact products such as the Godox P100 dye-sublimation photo printer offer another way of turning digital files into tangible objects. The R1 takes that idea in a completely different direction: your photograph can become part of the material itself.

Why the R1 could suit photographs

Photographic engraving places particular demands on a laser because tonal consistency matters. The R1 can operate at up to 1000mm/s, but more interestingly, Bambu Lab says its Speed-Synced Laser Power system adjusts output according to the movement speed of the toolhead. Without that compensation, slower movements can receive more energy and become darker while faster areas become lighter. The aim here is to maintain a more consistent tone throughout an engraving. [Press Release] Big Job. Light …

There is also vibration compensation, designed to minimise mechanical ringing as the head rapidly changes direction. That’s potentially important when an image contains fine hair, foliage, architecture or other high-frequency detail.

The standard short-focus lens has a specified spot size of Ø0.11mm, making it the option Bambu Lab recommends for fine detail. The machine has a sizeable 600 x 300mm working area, so there is plenty of room for larger photographic pieces as well as smaller personalised objects. Bambu R1 Media Kits cmpress

Positioning should be relatively straightforward thanks to what Bambu Lab calls its TriSense System. A BirdsEye Camera views the complete working area, a Toolhead Camera provides more precise positioning, and a Pinpoint Laser shows the location on the material. A Distance Measurement Laser then measures surface height and sets focus automatically. The company quotes positioning accuracy of less than 0.2mm. Bambu R1 Media Kits cmpress

That also means the R1 isn’t restricted to completely flat objects. Bambu Lab says it can engrave curved surfaces, potentially allowing photographs, graphics and text to be incorporated into bowls and other shaped pieces. A separate Rotary attachment is planned for full 360-degree engraving, although the supplied media notes that this functionality will arrive through a future firmware update. Bambu R1 Media Kits cmpress

For photographers who already experiment with making physical objects from images, this feels like an interesting extension of the digital workflow. We’re already seeing photography and fabrication overlap in unusual ways – Canon’s recent Dual Pixel 3D technology can turn a single photograph into a 3D model. With the R1, the route is different, but the idea is related: the photograph becomes the starting point for a physical object rather than simply the finished image.

There are important practical considerations. Engraving wood produces smoke, so the R1 uses crossflow ventilation to move fumes through the enclosure. An optional E1 Pro Air Purifier adds particulate filtration and activated carbon. In its normal enclosed configuration, the R1 is rated Class 1 under IEC 60825-1, with lid-open protection, flame detection and an emergency stop. However, fitting the Riser Base or Conveyor changes the machine to Class 4 operation, requiring appropriate CO2 laser-safety eyewear and trained professional use. [Press Release] Big Job. Light …

For me, the most interesting photographic application isn’t replacing a conventional photo printer. An engraved photograph has a completely different look and purpose. Instead, the R1 offers photographers another output medium: portraits burned into timber, landscapes rendered onto stone, images engraved onto glass, or photographs incorporated into larger mixed-material pieces. And that could make it particularly appealing to wedding, portrait, craft and fine-art photographers looking for something considerably different from another framed print.

Bambu Lab R1 specifications

Product type: 55W CO2 laser cutter and engraver.
Supported materials: cuts and engraves wood, acrylic, leather, fabric, paper, EVA foam and shell, with engraving support for coated metal, glass and ceramic.
Working area: 600 x 300mm standalone or 600 x 3000mm with the optional Conveyor.
Maximum speed: 1000mm/s.
Spot size: Ø0.11mm with short-focus lens, Ø0.17mm with medium-focus lens and Ø0.19mm with long-focus lens.
Positioning accuracy: less than 0.2mm.
Focusing: fully automatic laser ranging with curved-surface engraving support.
Safety: Class 1 laser safety in standard enclosed configuration.
Dimensions: 940 x 560 x 200mm.
Weight: 33.5kg. Bambu R1 Media Kits cmpress

Bambu Lab R1 price and availability

The official US price is $2,499 excluding tax and including shipping, while the official Euro price is €2,499 including tax and excluding shipping. An official UK price was not provided in the launch information supplied by Bambu Lab. Pre-orders start on 22 September 2026, with shipping scheduled to begin in October. A short-focus lens is included, while the Riser Base, Conveyor, Rotary attachment, medium- and long-focus lenses, Vision Encoder, E1 Pro Air Purifier and Auto Fire Extinguishing System are sold separately. [Press Release] Big Job. Light …

Please keep an eye on the official Bambu Lab R1 website for more details.
